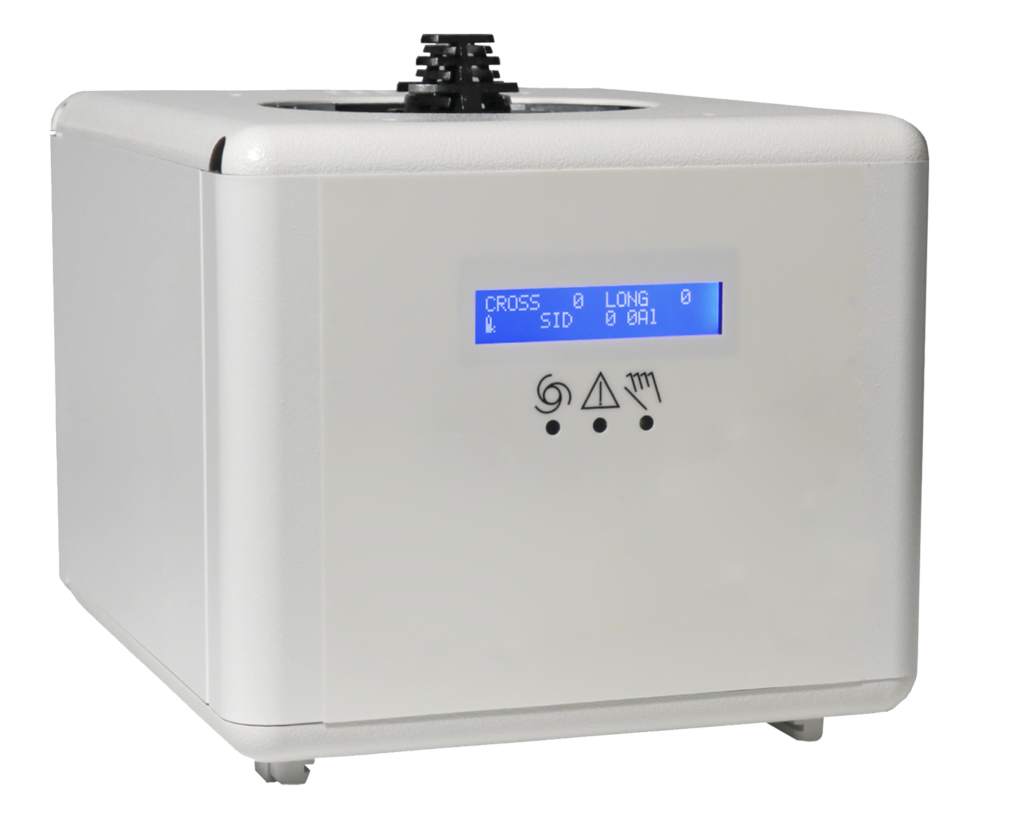

R 221 ACS

R 221 ACS

with Asymmetric Shutters and Remote Control

Single layer, square field with 4 independent shutters, automatic collimation system intended for installation on stationary X-ray equipment. This device has been designed and manufactured for skeletal, gastrointestinal, urographic and thoracic investigations.

technical information

Additional information

info tecniche

Maximum Radiation Leakage: 150 kVp – 4 mA
Single layer Square Field: 0x0 cm to 48×48 cm at 100 cm SID*
Single layer Square Field: 120×43 cm at 250 cm SID**
Minimum Inherent Filtration: 2 mm Al equivalent
4 Independent Asymmetrical Shutters (RO 476)
White LED
Remote Control (RO 484)
Dimensions: 282x244x216 mm
Weight: 11 Kg
6 Pairs of Shutters
CAN bus Protocol
Many Options for Personalization Available
